Measure distances on screen
Measure the distance between two points on screen using the Measure command. View measurements in the Status bar or tooltip.
TIP
For more accurate results, zoom in before you measure. The measurement is always the actual size, and is not affected by the zoom factor.
To measure a distance on screen...
Select View > Measure or press M and click the start point.

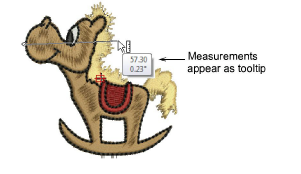

Move the pointer to the end point and hold the mouse still. If activated, length and angle measurements appear in a tooltip.
The following information displays in the Status Bar:
- Position coordinates of the end point (X=, Y=)
- Length of the measured line (L=)
- Angle of the line relative to the horizontal (A=).
Measurements are shown in millimeters or inches according to selection.
- Press Esc again to exit the command.
