Shift enlargement drawings
If the drawing is bigger than the digitizing tablet, you can move it across the tablet and continue digitizing. To move a drawing you need to draw, and digitize, two additional reference points.
To shift an enlargement drawing...
- Draw additional reference points on the enlargement drawing.
Position the points so that they will be on the active part of the digitizing tablet both before and after the move.
TIP
If you are shifting the drawing up or down, draw the additional reference points horizontally. If you are shifting left or right, draw them vertically.
- Select Setup > Tablet Setup.
Tick the Shift Drawing checkbox.
Untick the Register Drawing checkbox and click OK.
Click the additional reference points with Button 1 on the digitizing puck.

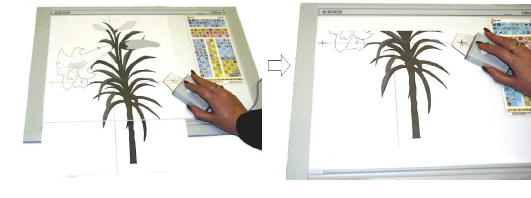

- Move the drawing so that the part you want to digitize next is over the active area of the digitizing tablet, and click the additional reference points again. The drawing is re-registered in the new position.
