Adjust dimensions
 | Use Toolbox > Lettering to adjust letter height and width. |
|---|

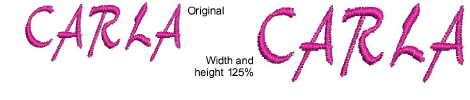

You can scale lettering objects vertically, horizontally and proportionally using the general properties or via the Special tab of the Object Properties docker.
To adjust dimensions...
- Select the lettering object. The current dimensions appear in the Property Bar.
- Adjust width and height settings either as absolute values (mm) or as a percentage of current settings.
- Press Enter.
- Alternatively, double-click the lettering object to access object properties.
- In the Height field enter the height of your lettering object in millimeters.
- Enter the width of your lettering object in the Width field as a percentage of the height.
- For wide letters, increase the percentage – e.g. 140%.
- For narrow letters, decrease the percentage – e.g. 70%.
Note
Letter height can vary between roughly 5mm and 200 mm. For recommended sizes, see Standard Fonts.
