Reshape star objects ​

ReshapeObject00040.pngUse Reshape > Reshape Object to reshape circle and star objects.

Change circle/star objects from circles to ovals using the Reshape Object tool.


To reshape star objects... ​

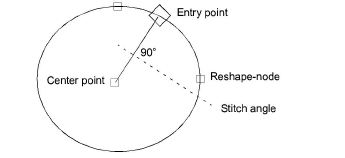

  • Select an object and click Reshape Object. Circle/star objects have two reshape-nodes (for radius and orientation), a center point (to reposition), and an entry point.

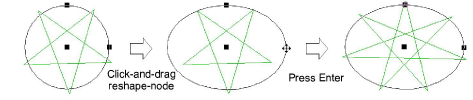

  • Use reshape nodes to change object radius, orientation, and position.


TIP

Change the stitch angle of circle objects by moving the entry point.

  • Press Enter.

TIP

To scale a circle without changing it to an oval, select it with the Select Object tool, and use selection handles.
