Make split patterns ​

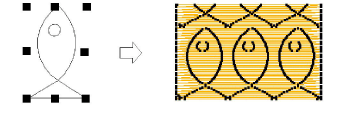

Make your own patterns to use in program split fills. Create patterns from the outlines of embroidery objects or from drawing objects. Patterns you create can also be used for Flexi Split effects.

To make a split pattern... ​

  1. Select the object (or objects) you want to use for the pattern.


  1. Select Object > Create Program Split.


  1. Enter a name in the Create Program Split dialog.

  2. Click OK. The new pattern is automatically selected in the Pattern list.
