New Color PhotoStitch ​

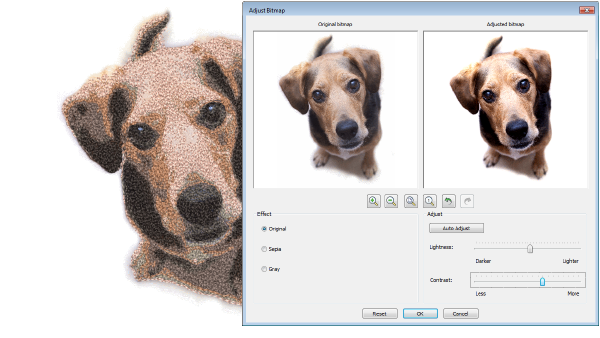

ColorPhotoStitch.pngUse Auto-Digitizing > Color PhotoStitch to automatically turn photographs and other bitmap artwork into multi-colored embroidery.

Amongst new and improved auto-digitizing features, EmbroideryStudio provides a powerful new Color PhotoStitch tool. See also Auto-digitize with Color PhotoStitch.


Process...

  • Import a photo/picture.
  • Optionally, crop the image.
  • Optionally cut out/mask background from the foreground with the cropping functions. You can do additional passes of the same photo with different cropped areas.
  • Optionally adjust lightness and contrast in the image.
  • Set the number of thread colors to use.
  • Map image colors to a selected thread chart.
  • Optionally, adjust stitching resolution to high, medium, or low. High resolution allows greater detail but with a higher stitch count.
  • Automatically convert to stitching using multiple thread colors.
  • Optionally, edit the resulting embroidery objects. Stitching created by Color PhotoStitch is editable as individual Manual Stitch objects. Select and delete as preferred and/or digitize other objects over the top.
