Scale lettering ​

SelectObject.pngUse Select > Select Object to scale lettering objects on screen.
ReshapeObject.pngUse Reshape > Reshape Object to scale lettering objects on screen.

You can scale your lettering objects vertically, horizontally and proportionally with the Select Object tool. You can scale your lettering objects vertically, horizontally and proportionally with the Reshape Object tool.

To scale lettering... ​

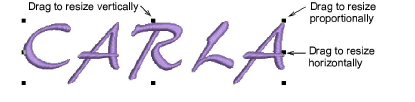

  • Click Select Object and select the lettering object.

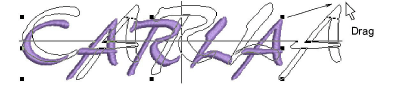

  • Click-and-drag one of the selection handles to resize the object horizontally, vertically or proportionally.

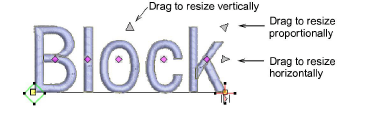

  • Alternatively, click Reshape Object.

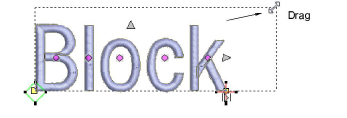

  • Click-and-drag one of the dark triangular control points to resize the object horizontally, vertically or proportionally.


  • Release the mouse to complete and press Esc.
