Select object ​

SelectObject.pngUse Select > Select Object to select individual objects as well as groups or ranges of objects.
FreehandSelect.pngUse Select > Freehand Select to select object at current by drawing a freehand line.
PolygonSelect.pngClick Select > Polygon Select to select objects with a selection marquee.
PolylineSelect.pngClick Select > Polyline Select to draw a line through the object to select.

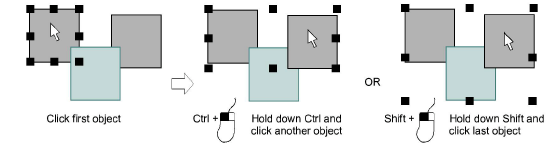

EmbroideryStudio provides various ways to select embroidery objects. It supports point & click, selection marquee and multiple object selection.

  • The simplest way to select an object is to point and click with the Select Object tool activated. Selection handles appear around selected objects.


  • Alternatively, use the Freehand Select tool to draw a freeline around the object/s you want to select. Press Enter to close.
  • Alternatively, use the Polygon Select tool to mark reference points around the object/s you want to select. Press Enter to close.
  • Or use Polyline Select to mark two or more reference points to create a line touching all objects you want to select.
