Save designs in Singer CSD format ​

The CSD Save Options allows you to select between CSD Type I and Type II.

To save designs in Singer CSD format... ​

  1. Select File > Export Machine File. The Export Design dialog opens.

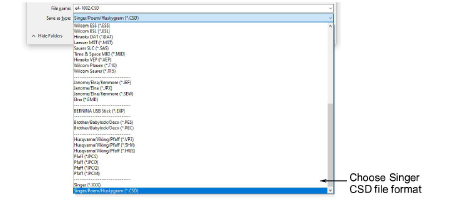

  1. Select CSD from the Files of Type list.

  2. In the File name field, enter a name for the design.

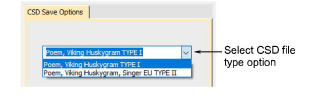

  3. Click Options. The Save Options dialog opens.


  1. Select the required CSD file type option.
  • Type II was introduced in CS 1.2B software for the POEM machine.
  • Type II is also used by the Singer EU software for the POEM machine.
  • Type II files also store thread color RGB values and an icon of the design.
  1. Click OK and then Save.
