Adjust fixed-width baseline settings ​

Lettering00088.pngUse Toolbox > Lettering to adjust baseline settings.

A free-line baseline does not have a fixed or pre-determined length – the baseline extends as long as you keep adding letters. A fixed-line baseline has a fixed length which you can digitize or specify numerically. Various options are available to handle text that extends beyond the baseline.


TIP

Precise control over baseline width is important when combined with Team Names when you want to ensure all names fit within the same area such as a pocket.

To adjust fixed-width baseline settings... ​

  1. Double-click a selected lettering object/s to access object properties.

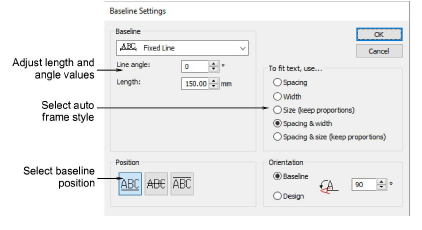

  1. Click Settings. The Baseline Settings dialog opens. Options depend on baseline type.


  1. Select a horizontal, vertical, or arc baseline from the list.

  2. Adjust the Length value as required.

Fixed-line baselines allow control over line length as well as options for handling text which does not fit the baseline. This is particularly useful for multiple ‘team’ names. Free-line baselines only allow you to adjust the Line Angle value.

  1. For fixed-line baselines, select an ‘auto-frame’ style:
  • Spacing: Letter size and width stays the same and letters are spaced evenly along the baseline. Letters may overlap if the text is too wide.


  • Width: The width of each letter is reduced and the original spacing kept.


  • Size (Keep Proportions): Letter width and height is reduced proportionally but the original spacing remains.


  • Spacing and Width: Letter width and spacing is reduced.


  • Spacing and Size (Keep Proportions): Letter width, height and spacing is reduced proportionally.


  1. Adjust the Line Angle as required. Enter the exact angle of baseline to the horizontal axis.


  1. Select a baseline position.


When creating lettering for a badge, for example:

  • For lettering above the badge, select a baseline below.
  • For lettering below the badge, select a baseline above.
  • For horizontal lettering through the middle of the badge, select a centered baseline.

  1. Specify the letter, word and line spacing as required.

  2. Select a letter orientation.

  3. Click OK to return to Object Properties > Special.
