Open stitching

ZigzagFill.pngUse Fill Stitch Types > Zigzag to create fills with an open ‘sawtooth’ effect. Right-click for settings.
EStitch.pngUse Fill Stitch Types > E Stitch to create fills with an open ‘comb’ effect. Right-click for settings.
ZigzagOutline.pngClick Outline Stitch Types > Zigzag to create open borders or columns of even width for an open ‘sawtooth’ effect. Right-click for settings.
BlanketOutline.pngUse Outline Stitch Types > E Stitch to create open borders or columns of even width for an open ‘comb’ effect. Right-click for settings.

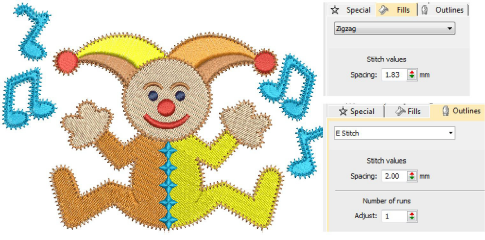

The Stitch Types toolbars include Zigzag and E Stitch stitch types. Both are used to create borders around appliqués. Both can also be used for decorative effects or open fills where fewer stitches are required. Zigzag and double zigzag stitches are also frequently used as underlays. Settings can be accessed via Object Properties > Outlines and Object Properties > Fills tabs.
