Export multi-decoration files
 | Use Standard > Export Multi-Decoration Files to export all design components requiring different production processes. |
|---|

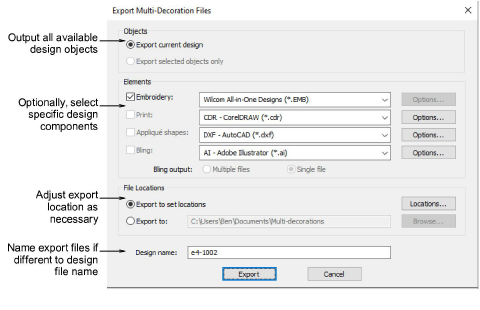

The Export Multi-Decoration Files capability allows you to export the different file formats involved in a multi-decoration design with a single command option. The system recognizes whether a design component is embroidery, graphic, appliqué, or bling. It shows each component in an export dialog with a list of corresponding file types to choose from.

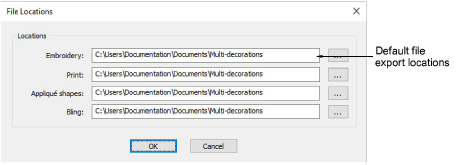

In some production environments, each file is placed in a specific location where it can be used by the operator of that process. For example, the Tajima Machine Network requires all files to be placed in a specific folder so they can be seen directly by the machine. Similarly, file formats used in any given process do not change unless the process changes – for example, if a machine is replaced.
