Create patterned bead runs ​

BeadRunAuto00060.pngUse Bead > Bead Run Auto to create a string of beads along a digitized line according to current settings.
ObjectProperties.pngUse Docker > Object Properties to toggle the docker on/off. Set properties for the current design.

With EmbroideryStudio, you can create bead run patterns for immediate use. Patterns generally involve multi-bead drops.

To create a patterned bead run... ​

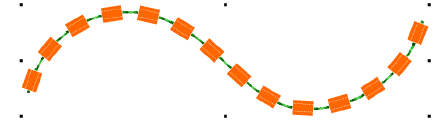

  • Create a bead-run object with Bead Run Auto or select an existing object. This allows you to preview your pattern as you go.


  • Select the bead combination you want to use.

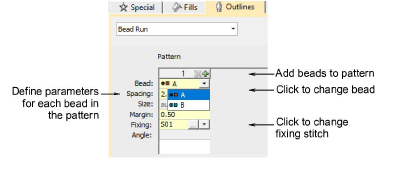

  • Open Object Properties. The Pattern table displays beads currently available.


  • Add or remove beads via the + and X buttons in the column header.

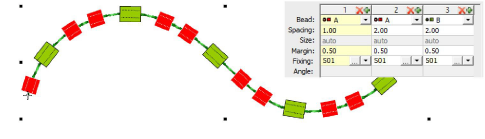

  • Select a bead from the droplist. The selected sample updates immediately.
  • In the Spacing field, enter a nominal spacing for each bead. By default, spacing is measured along the digitized line.


  • In the Fixing field, select the type of fixing you want. Generally you’ll use the same fixing for all beads in the pattern.
