Align objects
 | Use Arrange > Align Left to left-align selected objects. |
|---|---|
 | Use Arrange > Align Centers Vertically to align the centers of selected objects vertically. |
 | Use Arrange > Align Right to right-align selected objects. |
 | Use Arrange > Align Top to top-align selected objects. |
 | Use Arrange > Align Centers Horizontally to align the centers of selected objects horizontally. |
 | Use Arrange > Align Bottom to bottom-align selected objects. |
 | Use Arrange > Align Centers to align selected objects through their centers. |

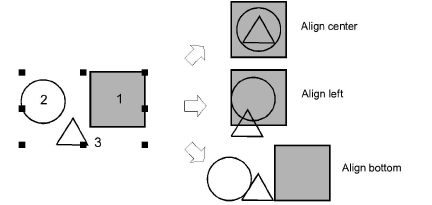

You can align selected objects to the left, right, top, bottom or center of a specified object.
To align objects...
- Select the objects you want to align.
- Select the object you want to align with.
- Click an alignment tool or select Arrange > Align > ...
Note
Objects are aligned with the last selected object. When all objects are selected using Ctrl+A or a selection marquee, they are aligned with the last object in the sequence.
