Switch machine formats ​

Once a design is complete, you can output to any supported embroidery machine without changing the original machine format. Explicit support is provided for these machine types:

  • Tajima TBF
  • Tajima TMCE-100
  • Tajima TMCE-600
  • Barudan FDR-II Chenille Combination
  • Barudan Chenille
  • Barudan FDR-II Twin Sequin Chenille Combination
  • Barudan FDR-3
  • Barudan FDR-3 Chenille Combination
  • Melco Chenille

If a selected machine format does not support a particular function in the design – either automatically or manually inserted – it is simply ignored.

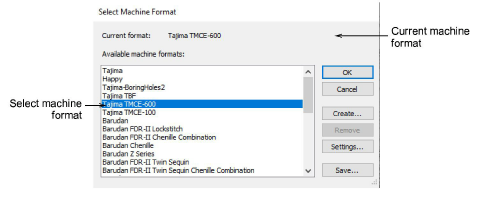

To switch machine formats... ​

  • Select Design > Select Machine Format.


  • Select the required chenille machine format from the list.
  • To check the settings for the selected format, click Settings.
  • Click OK.
