Create & modify thread charts
 | Use Color > Colorway Editor to create new thread charts. |
|---|
EmbroideryStudio lets you define your own charts. When you create a thread chart, you are creating a store of colors for future use. Select names that will help you remember the charts or help you sort frequently-used charts to the top of the list. Rename or remove charts at any time.
To create a new thread chart...

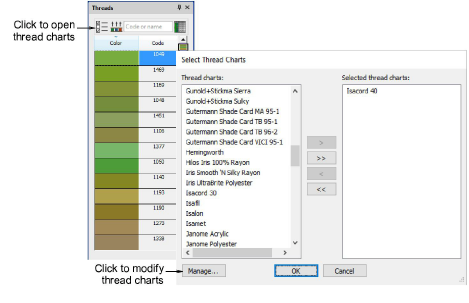

- Select Manage Thread Charts via the Setup menu. Alternatively, click the Select Thread Charts button in the Colorway Editor.

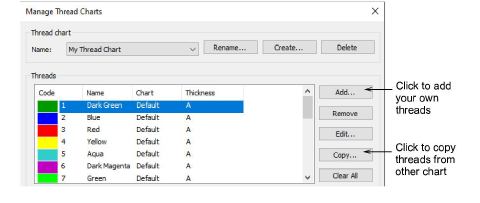

- Click Manage. The Manage Thread Charts dialog opens displaying the current thread chart.
- Click Create. The Create Thread Chart dialog opens.
- Enter a name for the chart and click OK. The new chart is created, ready for you to add colors.
- Click Delete to remove the entire chart.
- Click Rename to change names.
Caution
Be careful when deleting thread charts. If you delete the wrong chart you will need to reinstall EmbroideryStudio to restore it.
