Manage user-refined letters ​

User-refined letters are managed via the Manage User-Refined Letters option. This menu item is only enabled when a lettering object with a font containing user-refined letters is currently selected.

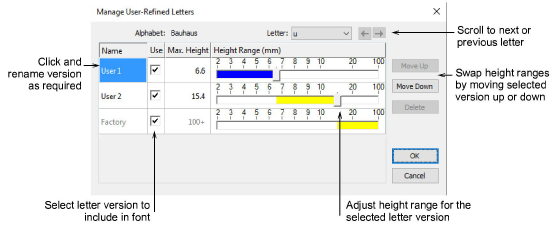

To manage user-refined letters... ​

  • While the letter is selected, select Setup > Manage User-Refined Letters.

The original factory default letter is identified by the name ‘Factory’. For converted TrueType font letters, the word ‘Convert’ appears instead of ‘Factory’.


  • Use left/right arrow buttons or droplist to select a user-refined letter.
  • Click and rename any version except ‘Factory’ or ‘Convert’.
  • Delete any selected version name except ‘Factory’.
  • Untick the Use checkbox if you want to temporarily exclude a letter.
  • Swap height ranges with the Move Up/Down buttons and adjust them by means of slider bars.
