Export design lists ​

ExportDesignList.pngUse Manage Designs > Export Design List to export selected files to Tab and CSV (Comma Separated Value) formats suitable for use by most spreadsheets.

The Export Design List option can be used to print design lists for selected folders. This option allows you to create a simple design report which can easily be imported into a spreadsheet. You may want to use this in order to manage designs by file name.

To export a design list... ​

  • Preset the measurement units you want to use – metric or U.S.

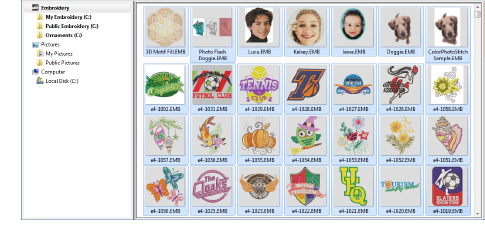

  • Open the Design Library and select a design folder.
  • Sort and filter the designs to export.


  • Select all files to include in the export list.
  • Click the Export Design List icon and choose a location to save the list. Choose whether to save as a tab-delimited or comma-separated text file.
  • Open the text file in a spreadsheet for further sorting and printing.


TIP

Designers frequently want to distribute designs for viewing in real colors, in TrueView™ or otherwise, with or without fabric backgrounds. Screen images can be captured in PNG format and send as email attachments.
