Make objects the same size ​

MakeSameWidth.pngClick Arrange > Make Same Width to scale an object or design to the same width as a reference object.
MakeSameHeight.pngClick Arrange > Make Same Height to scale an object or design to the same height as a reference object.
MakeSameWidthAndHeight.pngClick Arrange > Make Same Width and Height to scale an object or design to the same size as a reference object.

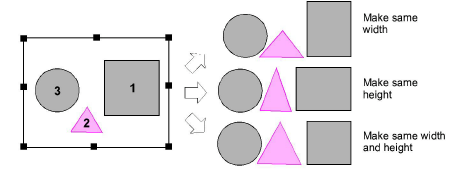

You can scale objects to the same size as a reference object. Resize height or width or both.

To make objects the same size... ​

  1. Select the objects to resize.

  2. Select the object that is the size you require.

  3. Click a sizing tool or select Arrange > Make Same Size > ...


Note

Objects are resized with reference to the last object selected. If all objects are selected by using Ctrl+A or a selection marquee, they are resized with reference to the last object in the sequence.
