Add tie-offs
 | Click Function > Insert Tie-Off to insert a tie-off. |
|---|
You can add tie-offs in your design using the Tie-Off tool. This provides a semi-automated technique for adding tie-offs as an alternative to digitizing them with manual stitches. Tie-offs are usually added before a trim at the end of an object. Generally you will follow a tie-off with a trim.
To add a tie-off...
Travel to the object you want to tie-off.
Click the Insert Tie-off icon. A Tie-off function is inserted.

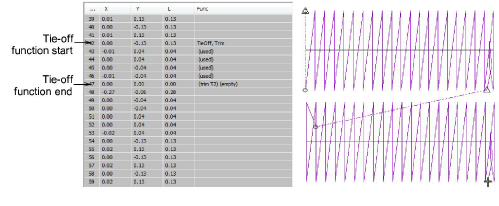

The default number of tie-off stitches is two. This means the needle backtracks twice and returns to the insertion point. Adjust this value in the Object Properties > Connectors docker.
TIP
You can also insert machine functions manually using the Insert Machine Function dialog.
