Select stitches with the Stitch List ​

StitchList.pngUse Docker > Stitch List to toggle Stitch List display on and off. Use it to select individual stitches.

You can view and select individual stitches by means of the Stitch List.

To select stitches with the Stitch List... ​

  • Click the Stitch List icon.

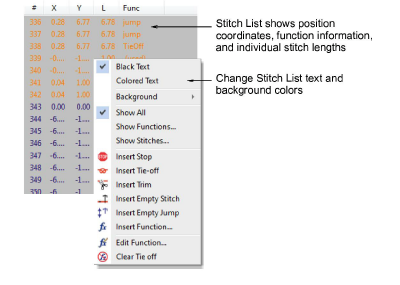

The Stitch List opens. It shows stitch position coordinates and function information – e.g. whether the stitch is a jump. It also shows the length of every stitch in the design.


  • Right-click to access popup menu options. For example, display text in black by selecting Black Text or in the associated stitch color by selecting Colored Text.

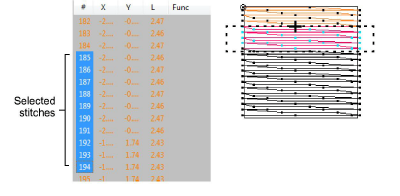

  • Click a stitch to select it. Stitches selected in the Stitch List are also selected in the design, and vice versa.


  • Use keyboard shortcuts to aid selection:
  • To select a range, hold down Shift as you select.
  • To select multiple stitches, hold down Ctrl as you select.
