Sequence selected objects

Back1Object.pngUse Sequence > Back 1 Object to move a selection back one object in the stitching sequence.
Foward1Object.pngUse Sequence > Forward 1 Object to move a selection forward one object in the stitching sequence.
Back1Color.pngUse Sequence > Back 1 Color to move a selection back one color in the stitching sequence.
Forward1Color.pngUse Sequence > Forward 1 Color to move a selection forward one color in the stitching sequence.
MoveToStart.pngUse Sequence > Move to Start to move a selection to start of stitching sequence.
MoveToEnd.pngUse Sequence > Move to End to move a selection to end of stitching sequence.

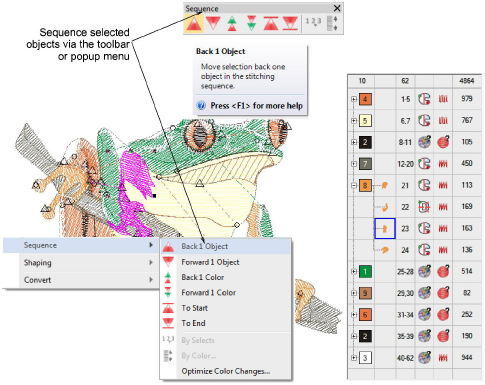

The Sequence toolbar provides a convenient means for sequencing selected objects. Use it in conjunction with the Color-Object List. Alternatively, use the popup menu Sequence option to resequence objects ‘on-the-fly’. The same options can be accessed from the Color-Object List popup menu.


TIP

Entry and exit points should also be checked when you are resequencing objects in a design.
