Assign thread colors ​

Threads.pngUse Color > Threads to search for and match threads from different charts, and assign for use.
AddColor00012.pngUse Color > Add Color to add a new color slot to the color palette.
ColorwayEditor.pngUse Color > Colorway Editor to assign thread colors to slots in the color palette.
SelectThreadCharts.pngUse Threads > Select Thread Charts to select the thread chart/s you currently have available for use.
AssignThread.pngUse Threads > Assign Thread to assign selected thread to the highlighted color in the current colorway.
MatchAll.pngUse Threads > Match All to match threads from the current chart/s to all color slots in the current colorway.

The supplied charts represent the brands of threads that EmbroideryStudio supports. Each chart includes a range of thread colors together with code, brand and description. You can search for a thread by code or description and assign it to a selected design color slot. Alternatively, let the software match design colors to threads in the current thread chart/s.

To assign thread colors... ​

  • Press Esc to deselect all objects. The currently selected (default) color is shown in the toolbar.

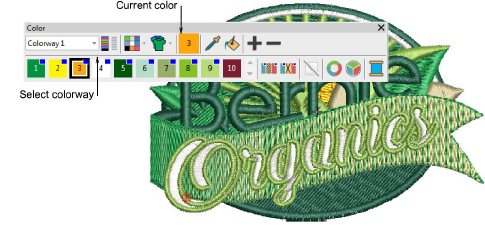

  • Select a colorway and click the Threads icon. Alternatively, right-click a color in the palette. The docker opens.

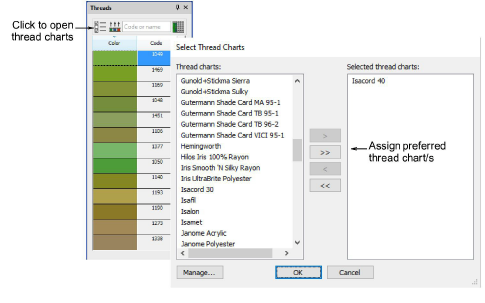

  • Click the Select Thread Charts button to access the thread chart listing.
  • Choose the chart/s you prefer or currently have available and click OK.
  • Click a color in the Color toolbar to make it current. The Threads list updates automatically.
  • Alternatively, click Add Color to add a new color slot to the color palette and make it current.

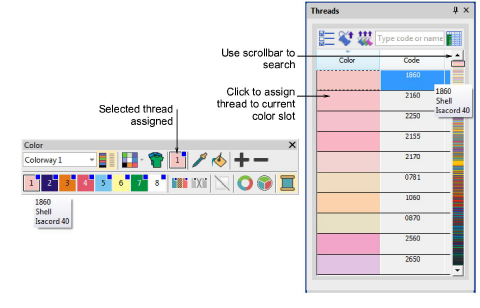

  • Use the scrollbar to refine your search. Or, in the Search field, enter the first few characters of the required code or name. The code is the identification number of a thread color in a brand. The system searches for the closest match and displays it in the thread color list.
  • Double-click or click Assign Thread to assign a thread to the current color slot in the current colorway.
  • Alternatively, use Match All to assign threads from the current chart/s to all color slots in the current colorway.
  • Check the thread assignments in the Color toolbar by hovering the pointer over the slots.
  • Optionally, click Remove Unused Colors to remove unused colors.

Note

The Remove Unused Colors tool is disabled for machine formats that use needle addressing – i.e. that have Color Change set as Needle No in the Machine Format Settings dialog.
