Reshape motif runs
 | Use Reshape > Reshape Object to reshape selected motif run objects. |
|---|
Motif runs can be reshaped like other embroidery object, but special control points are provided.
To reshape a motif run...

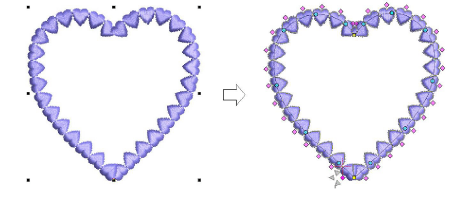

- Select a motif run object and click the Reshape Object icon. Control points appear around the motifs.

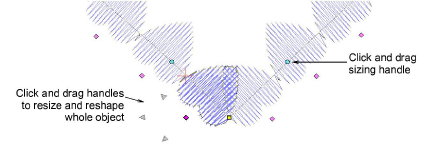

- Adjust object size like any other object using sizing handles.
- Click the diamond control point of a motif to activate reshape nodes. Use these to fine-tune individual motifs. Each one can be rotated, skewed, or resized respectively.
Note

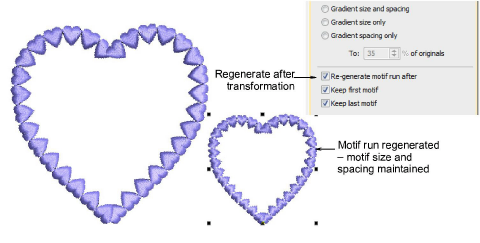

A ‘Regenerate motif run’ checkbox forces the system to regenerate motif runs based on current settings whenever an object is scaled or skewed. When left unchecked, the system will not re-generate and the number of motifs will remain unchanged after the transformation.
- Press Esc to finish.
