New Beading Element
| Element | 1 | 2 | 3 | 4 | 5 | ||
|---|---|---|---|---|---|---|---|
 | Beading | Provide support for beading devices. Four fixing methods are available: Upright, Laid, and Above or Below the run line. | m | m | – | – | – |
| 1 ES Designing 2 ES Digitizing 3 ES Decorating 4 ES Editing 5 ES Lettering l Included as standard m Modular ‘element’ |
With the release of this update, EmbroideryStudio e4 includes the new specialty Beading Element which provides support for beading devices, single and mulitple. See Bead Embroidery for details.
Fixing stitch support

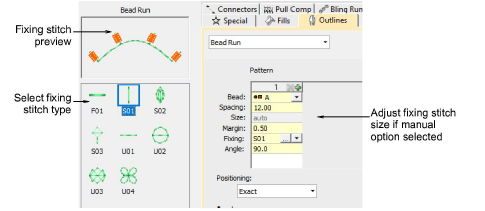

Various layout methods are available on the machine. EmbroideryStudio supports the classic fixing stitch types – ‘upright’, ‘flat’, and ‘sideways’ – and others. See Bead fixings for details.
In addition to the classic fixing stitch types, the Beading feature includes a range of decorative fixing stitches for use in bead runs or individual bead drops. See Apply bead fixings for details.
TIP
Before using the Bead tools, you need to choose a suitable machine format. Only some machine formats support beading – e.g. Tajima TBF, Dahao and SWF Twin Sequin. Refer to your machine manual for information about support for this type of decoration. See also Bead encoding & decoding.
