Smart corners
 | Use Stitch Effects > Mitre Corners to create sharp lines at intersections of two columns. Right-click to adjust settings. |
|---|---|
 | Use Stitch Effects > Cap Corners with very sharp corners to generate fewer stitches. Right-click to adjust settings. |
 | Use Stitch Effects > Lap Corners for ‘Tidori’ style stitching. Right-click to adjust settings. |

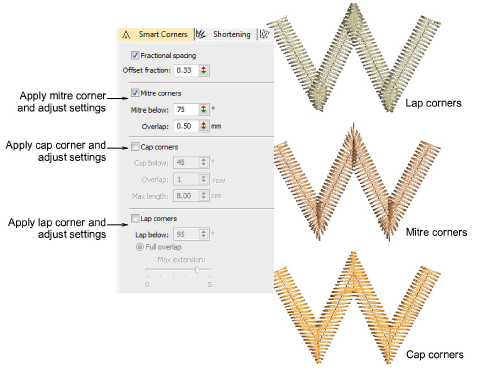

Use the Smart Corners feature to reduce the number of stitches and risk of bunched, distorted embroidery in sharp corners. Mitre Corners creates a sharp line at the intersection of two columns. Use it primarily for corner angles of 75° to 90°. Cap Corners is suitable for very sharp corners as it generates fewer stitches. Lap Corners is suitable for ‘Tidori’ style stitching. It can be applied to Column C and appliqué objects. Adjust settings with the Object Properties > Effects > Smart Corners tab.
