New standard stitch types ​

EmbroideryStudio e4 provides four new standard stitch types in ES Designing and ES Digitizing.

New Sculpture Outline stitch ​

SculptureOutlline.pngUse Outline Stitch Types > Sculpture Outline to create a thick-thin outline alternating single and triple stitches for a hand-stitched look.

For a more hand-stitched appearance, use the new Sculpture Outline. This variant stitch type alternates single and triple stitching for a thick-thin outline. Alternating single and triple straight running stitches, gives a hand stitched look. See also Simple outlines.

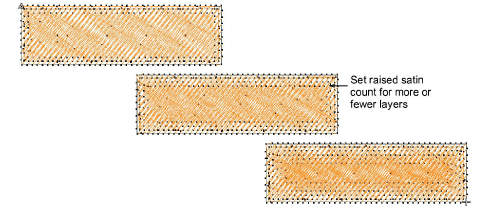

New Satin Raised stitch ​

RaisedSatinFill.pngUse Fill Stitch Types > Satin Raised to create raised surfaces – can be applied to lettering or used with trapunto for quilting effects. Right-click for settings.
  • Automatic multiple layers of overlapping satin stitching for a 3D look
  • For both fills and outlines (Column C)


See also Satin stitching.

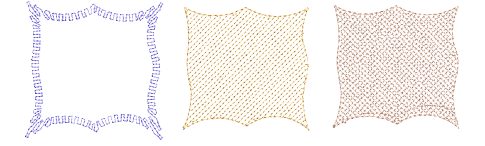

New Square stitch ​

Square.pngUse Outline Stitch Types > Square to create open borders or columns of even width for an open ‘toothed’ effect. Right-click for settings.
Square00073.pngUse Fill Stitch Types > Square to create open straight parallel fills. Right-click for settings.
  • Square end open run style fill
  • For both fills and outlines
  • Useful for digitizing underlays as an object on their own for special cases. See also Chenille patterns.


New Double Square stitch ​

DoubleSquare.pngUse Fill Stitch Types > Double Square to create grid fills. Apply closed shapes.
  • Two layers of square end open run style fill
  • At a selected angle to each other - default 90 degrees
  • Useful for digitizing underlays as an object on their own for special cases.

Basic Motif fill Standard ​

MotifFill.pngUse Fill Stitch Types > Motif Fill to create decorative fills using embroidery motifs to form repeating patterns. Right-click for settings.
  • In ES Decorating/Designing/Digitizing
  • Additional predefined motifs included

Standard motif fill is a simplified motif fill for predefined motifs only, as in DecoStudio e3. Fully featured motif fill capabilities are provided as an add-on element for ES Designing and ES Digitizing only. See also Motif stitching.
