Trim vector & embroidery objects ​

Intersect00132.pngUse Shaping > Intersect to trim overlapping areas so that only those intersected by all selected objects remain.
Exclude00133.pngUse Shaping > Exclude to trim overlapping objects and preserve their individual properties.
FrontBack00134.pngUse Shaping > Front-Back to trim overlapping objects so that only non-overlapped areas of the topmost object remain.
BackFront00135.pngUse Shaping > Back-Front to trim overlapping objects so that only non-overlapped areas of the bottommost object remain.

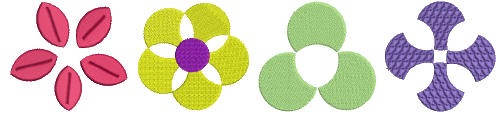

Trim selected objects using the Intersect, Exclude, Front-Back or Back-Front tools.


To trim vector and embroidery objects... ​

  • Select vector or embroidery objects to shape.

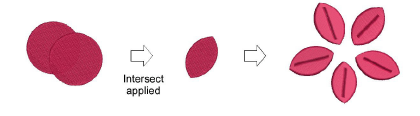

  • Use Intersect to trim overlapping areas so that only those intersected by all selected objects remain.

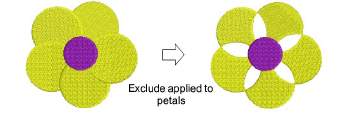

  • Use Exclude to trim overlapping objects and preserve their individual properties. The result is similar to Combine except that object properties are not merged.


TIP

Use Exclude to cut holes in Complex Fill objects.

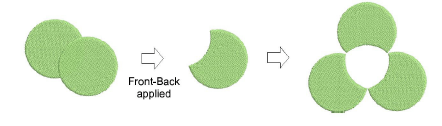

  • Use Front-Back to trim overlapping objects so that only non-overlapped areas of the topmost object remain.

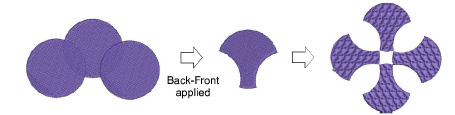

  • Use Back-Front to trim overlapping objects so that only non-overlapped areas of the bottommost object remain.


TIP

Use the Remove Overlaps feature to maintain shapes but remove the underlying layer of stitching.
