Send designs to Connection Manager
 | Use Standard > Send to Connection Manager to connect to supported machines via proprietary machine software. |
|---|
Newer machines use USB or Wired-Wireless network connections. They can appear as a disk drive or be setup to read designs from a folder on the PC. Some machines such as Janome MB-4 and Barudan LEM are supplied with propriety connection software. EmbroideryStudio supports connection to these machines via Connection Manager. Each machine connection:
- Has a unique name and ‘quick-access’ button
- May have a unique folder to which designs can be sent. From here they can be accessed from the machine control panel or third-party connection software.
To send a design to Connection Manager...
- Ensure that the target machine is correctly connected to your PC. See your machine documentation for details.

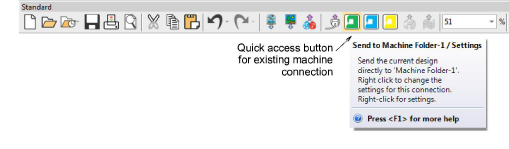

- If a connection already exists, click the quick-access button to send the design to a predefined location.
- Alternatively, click the Send to Connection Manager icon.
- If no connections currently exist, you will be prompted to set one up. See Setting up machines for Connection Manager for details.

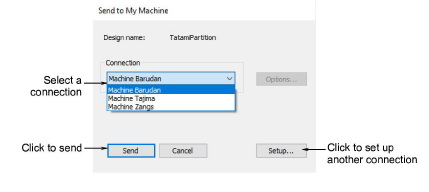

- If a connection already exists, the dialog opens.
- Select a connection from the droplist and click Send.
- Using the machine controller or third-party connection software, access the design from the network or PC folder.
- Load or send the design and stitch it on the machine.
