Design viewing options ​

Options00049.pngUse Standard > Options to access application options for design view, grid & guides, and other settings.

EmbroideryStudio lets you preset options to show or hide design elements such as stitches, outlines, and background fabric. You can also change TrueView™ settings for different viewing effects.

To set design viewing options... ​

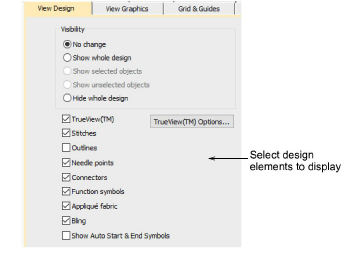

  • Click the Options icon or select Setup > Options and select the View Design tab.


  • Select viewing options to display. These control the same toggles as the View toolbar. The difference is that the selections you make here affect default system settings.

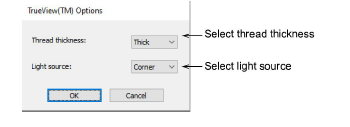

  • Click TrueView Options to adjust TrueView™ settings.

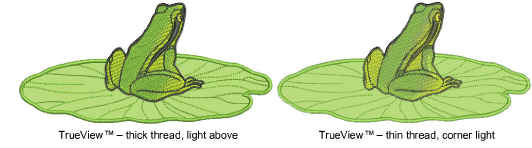

  • Adjust thread thickness and light source for preferred TrueView™ appearance. These settings also affect the appearance of printed TrueView™ ‘virtual decoration’.


Note

This Thread Thickness setting only affects the TrueView™ display, not actual thread thickness values.
