Select thread colors
 | Use Color > Pick Color to pick up a color from an existing object and make it current. |
|---|---|
 | Use Color > Current Color to view current color. |
 | Use Color > Apply Current Color to apply the currently selected palette color to embroidery objects. |
 | Use Color > Add Color to add a color to the end of the color palette. |
 | Use Color > Remove Color to remove an unused color from the end of the color palette. |
 | Use Color > Hide Unused Colors to show or hide all unused colors in the color palette. |
 | Use Color > Remove Unused Colors to remove all unused colors from the color palette. |
New objects are digitized using the current color on the Color toolbar. You can change colors at any time.
To select thread colors...
- Press Esc to deselect all objects.

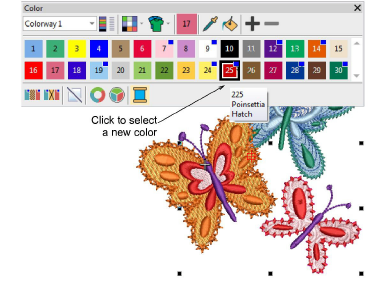

- Click a color in the Color toolbar to make it current. Alternatively, pick a color from the design with the Pick Color tool. The current color is shown on the toolbar and highlighted in the palette with a black square.

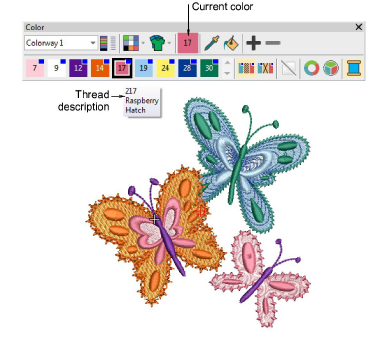

- Hover the mouse pointer over a color to view the thread code, thread name, and thread chart in a tooltip.

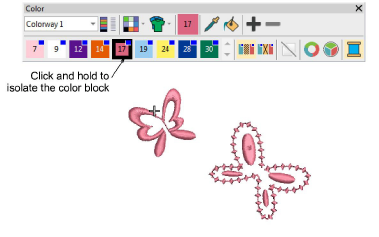

- To isolate a color block in the design window, click and hold it in the Color toolbar. First press Esc to deselect all objects.

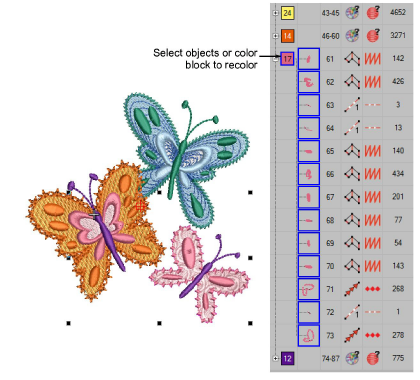

- Select object/s you want to recolor. Alternatively, select a color block in the Color-Object List.
- Select a color from the palette. Alternatively, transfer a used color to other objects with the Apply Current Color tool.
- Use the +/- buttons to add or remove color slots as needed.
- Use the Hide or Remove Unused Colors controls as preferred to compact the palette.
