Change backgrounds ​

BackgroundDisplayColorsDroplist.pngClick Color > Background & Display Colors split arrow to change the background color of the current colorway.
ProductVisualizerDroplist.pngUse Color > Product Visualizer to choose a garment or product backdrop on which to position your decoration.
ShowProduct.pngClick View > Show Product to toggle product image on/off. Right-click to open the Product Visualizer docker.

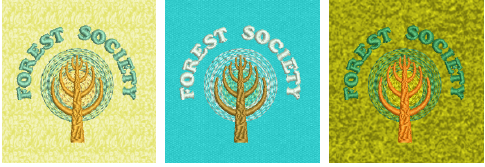

EmbroideryStudio lets you set the background color, fabric, or product of each colorway for more realistic previews and presentations.


To change backgrounds... ​

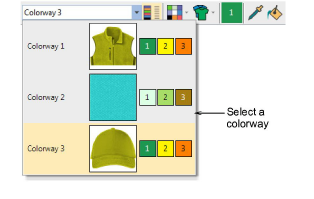

  • Open the design and select a colorway.


  • Use View > Show Product to toggle on or off any product image that may be included in the colorway.
  • Click the droplist next to the Background & Display Colors icon.

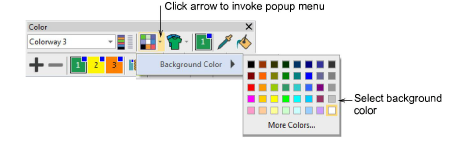

  • Change color via the Background Color popout menu.

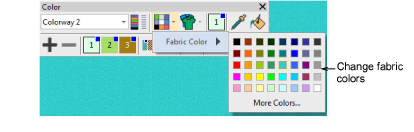

  • If your colorway includes a background fabric, change color via the Fabric Color popout menu.

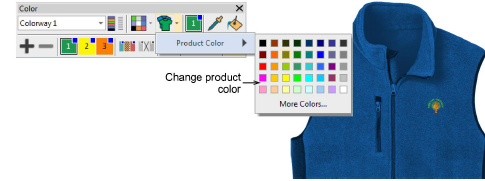

  • If your colorway includes an article or product, open the Product Visualizer droplist and change color via the Product Color popout menu.


TIP

Click Background & Display Colors or Product Visualizer icons to preset any of these options.
