Add & remove holes
 | Use Graphics Digitizing > Hole > Add Holes to cut holes in filled objects. |
|---|---|
 | Use Graphics Digitizing > Hole > Remove Holes to remove holes from selected objects. |

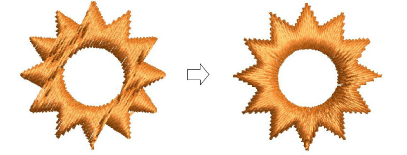

With EmbroideryStudio you can cut holes in selected closed objects with a single stitch angle using the Add Holes tool. The complementary Remove Holes tool allows you to remove unwanted holes in closed objects.
To add or remove holes...
- Select the object to modify.
- Click the Add Holes icon. Reference points display around the object outline.
- Digitize additional boundaries for the object. Press Enter after each boundary.
- Press Enter.
- Optionally, add turning stitch angles to the object.
Note
To remove all internal boundaries from a closed object, select it and click Remove Holes.
