Skewing objects ​

Skew.pngUse Transform > Skew to skew selected objects by an exact amount (in degrees).

You can skew objects directly on screen or by setting an exact skew angle.


To skew objects... ​

  1. Select the objects to skew.

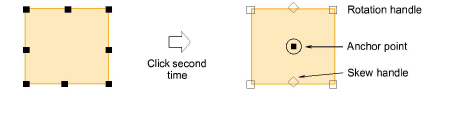

  2. Click the object a second time. Skew handles are diamond-shaped and appear at the center-top and bottom of the object.

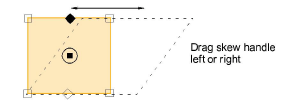

  1. Drag handles left or right.


TIP

Alternatively, to skew by an exact amount, enter an exact angle in the Skew field on the Transform toolbar and press Enter.
